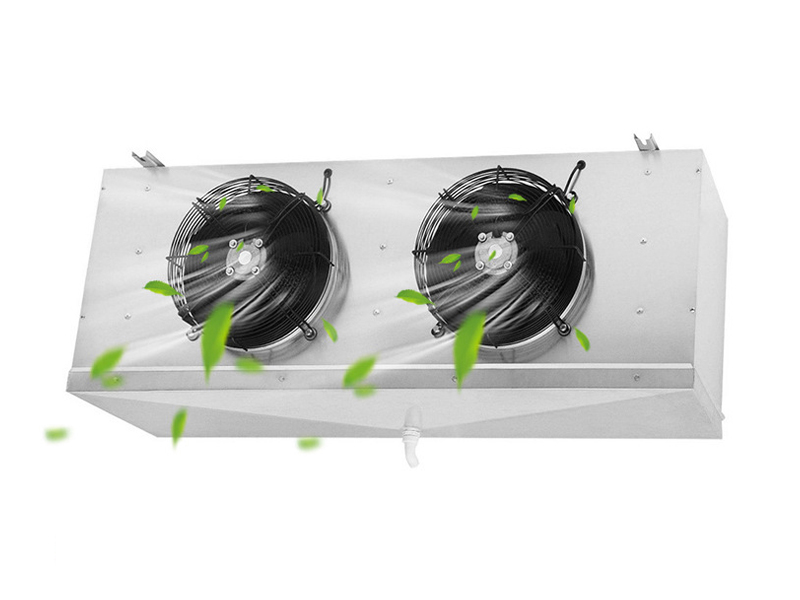

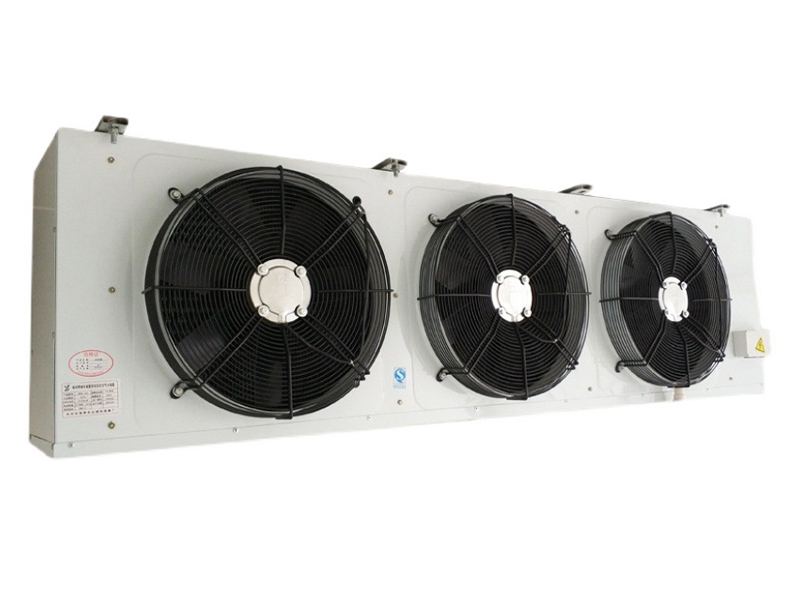

DJ series air cooler - quick freezing warehouse below -35 ℃ -18 ℃

Variations

Fan types: DD series, DL series, DJ series
Series differences:
The DD series is used for refrigeration or freezing at temperatures ranging from -18 ℃ ~ -10 ℃. 6mm spacing between fins
The DL series is used for cooling in fresh-keeping warehouses or workshops above 0 ℃. Fin 4.5mm
3. The DJ series is used for quick freezing warehouses below -35 ℃~-18 ℃. Fin spacing of 9mm

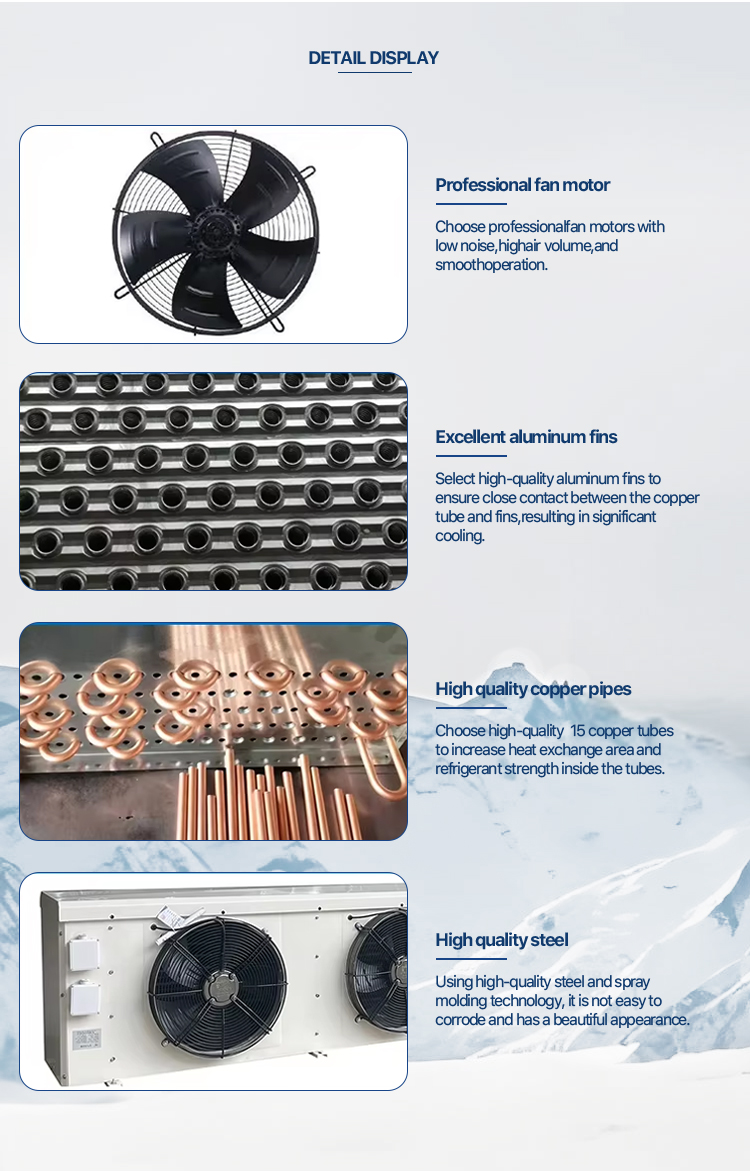

Components of air cooler: copper tube, galvanized shell, motor, coil


Or reach out to us today! 24hs waiting for you!

DJ series air cooler - quick freezing warehouse below -35 ℃ -18 ℃
  • air cooler for cold room,cold room air cooler,evaporative air cooler industrial
  • air cooler for cold room,cold room air cooler,evaporative air cooler industrial
  • air cooler for cold room,cold room air cooler,evaporative air cooler industrial
  • air cooler for cold room,cold room air cooler,evaporative air cooler industrial
  • Product description
  • FAQ

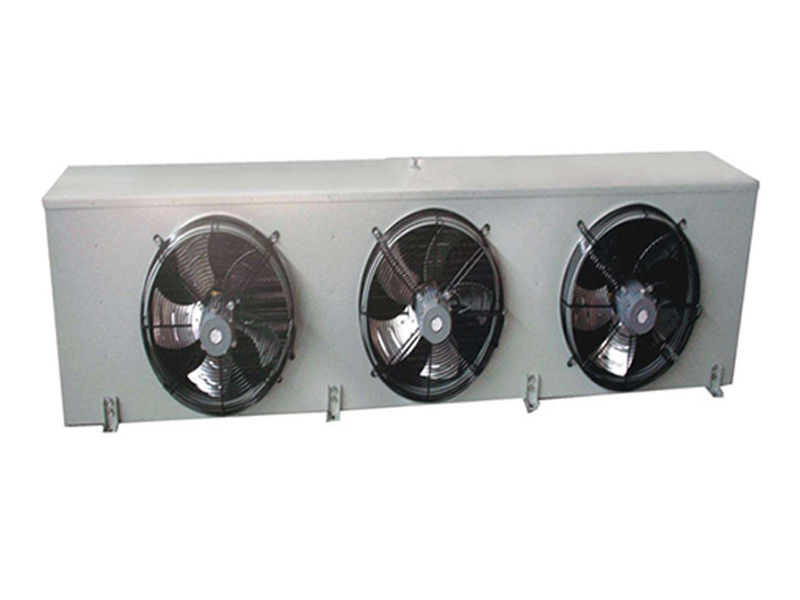

Cold Room Air Cooler

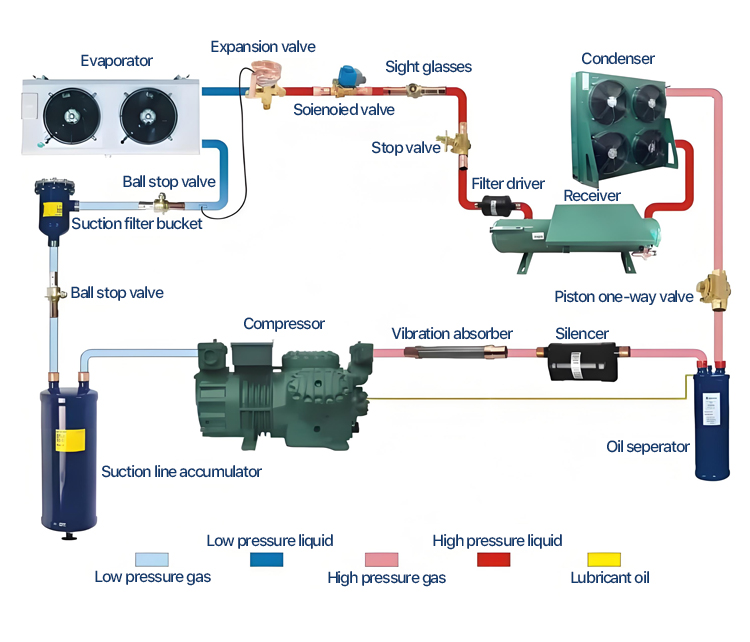

It is a refrigeration equipment used in cold storage, mainly composed of cooling heat exchange tubes, axial flow fans and other components. By vaporizing and absorbing heat in the cold air fan with low-temperature and low-pressure refrigerant, and using the fan to force air convection circulation, the purpose of reducing the temperature inside the cold storage is achieved.
ITEMS DETAILS
TUBES Material Copper, stainless steel, cu-ni
Dimension 7.00mm, 9.52mm,12.7mm, 15.88mm
FINS Material Aluminum, red copper, stainless steel
Mold specification 21*18.19mm, 25*21.65mm, 25.4*22mm, 31.75*27.5mm, 38.1*33mm, 48*41.57mm, 50*50mm
Pitch of fins 1.4-9.0mm
FRAME Material Galvanized steel, stainless steel of 201/ 304/ 316
Thickness 1-3 mm
COLLECTION PIPE Material Copper pipe, seamless steel pipe, stainless steel pipe





FAQ

1. who are we?
We are based in Henan, China, start from 2020,sell to Domestic Market(60.00%),Southeast Asia (10.00%),Eastern Asia(9.00%),MidEast(6.00%),Africa(5.00%),South Asia(5.00%),Western Europe (3.00%),North America(2.00%). There are total about 11-50 people in ouroffice.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.what can you buy from us?
Cold Storage Plate, Rock Wool Board, Cold Storage Door, Cold Storage, Condensing Unit

4. why should you buy from us not from other suppliers?
Our company dares to guarantee the lifetime warranty of product core materials. We mainly focus on medium and high-endproducts,with medium and low-end prices. We look forward to a greener and environment-friendly tomorrow with you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA； Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,Russian,Korean
