Polyurethane Sandwich Exterior Wall Panel

Variations

Polyurethane thickness: 40/50/75/100/120/150/200mm
pu/pir thickness：40/50/75/100/120/150/200mm
Color steel thickness: 0.3-0.8mm (PPGI color steel thickness)
Stainless steel: 0.4mm-0.8mm (Stainless steel thickness)
Density: 38kg-45kg/m ³ (Pu density)
Color: RAL color card
Width: 1130mm (effective width 1130mm)
Thermal conductivity: ≤ 0.021W/(m ∙ K)/compressive strength: ≥ 150KPA
Fire rating: B1 Level (can withstand fire for 90 minutes)
Oxygen index: ≥ 26.5%/Airtightness: ≥ 97% (the best sound insulation material)
Application direction: Industrial plants, wing rooms, insulation and enclosure structures

Or reach out to us today! 24hs waiting for you!

Polyurethane Sandwich Exterior Wall Panel
  • wall panels boards,sandwich panel,exterior wall panel,sandwich panels wall,pu sandwich wall panels
  • wall panels boards,sandwich panel,exterior wall panel,sandwich panels wall,pu sandwich wall panels
  • wall panels boards,sandwich panel,exterior wall panel,sandwich panels wall,pu sandwich wall panels
  • wall panels boards,sandwich panel,exterior wall panel,sandwich panels wall,pu sandwich wall panels
  • Product description
  • FAQ


Exterior wall sandwich panel is a kind of plate composed oftwo surface panels (such as color steel plate, aluminumolate, etc.) and intermediate core material (rock wool, polyurethane, etc.), which has the properties of heat preservation, heat insulation, fire prevention, sound insulation, etc, and is commonly used for energy conservation and structural endosure of building exterior walls.



*Composition
Outer Panel: Colored steel/galvanized steel (0.4-1.0mm), smooth finish.
Core: Polyurethane foam (high closed-cell rate, unifomm density).
*Key Features
Superior insulation: λ s0.023W/(m*k), minimal energy loss.
Waterproof: Closed cells prevent leakage.
Strong & Rigid: Withstands pressure/impact, non-deformable.
Aesthetic: Customizable colors, sleek surface.
Name PU sandwich panel

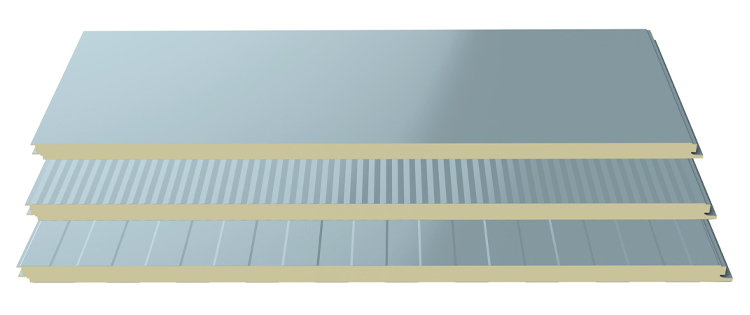

Ripple Water ripple/Square wave/Plane
Usage Exterior wall
Length Customizable
Thickness 50mm, 75mm, 100mm(customizable)
Width 1000mm

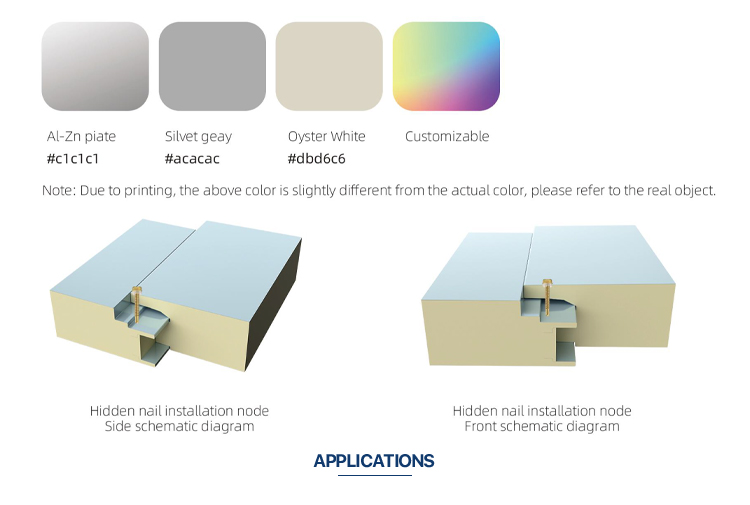

Advantages Hidden nail connection,smooth wall,fireproof,
extremely high bending load resistance, reducing dependence on steel structures.

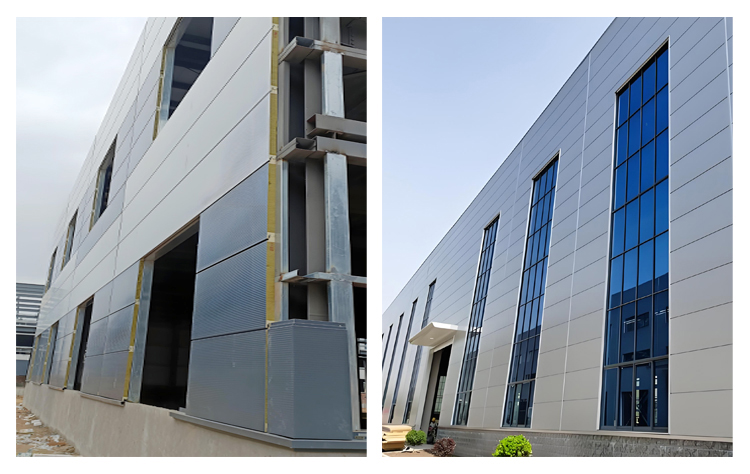

Factories, cold storage, steel structures, high-rise fire barriers, coastal/humid zones, warehouses, offices, stadiums, airports, transportation hubs.

FAQ

1. who are we?
We are based in Henan, China, start from 2020,sell to Domestic Market(60.00%),Southeast Asia (10.00%),Eastern Asia(9.00%),MidEast(6.00%),Africa(5.00%),South Asia(5.00%),Western Europe (3.00%),North America(2.00%). There are total about 11-50 people in ouroffice.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.what can you buy from us?
Cold Storage Plate, Rock Wool Board, Cold Storage Door, Cold Storage, Condensing Unit

4. why should you buy from us not from other suppliers?
Our company dares to guarantee the lifetime warranty of product core materials. We mainly focus on medium and high-endproducts,with medium and low-end prices. We look forward to a greener and environment-friendly tomorrow with you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA； Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,Russian,Korean

Polyurethane Sandwich Exterior Wall Panel

Variations

Polyurethane thickness: 40/50/75/100/120/150/200mm
pu/pir thickness：40/50/75/100/120/150/200mm
Color steel thickness: 0.3-0.8mm (PPGI color steel thickness)
Stainless steel: 0.4mm-0.8mm (Stainless steel thickness)
Density: 38kg-45kg/m ³ (Pu density)
Color: RAL color card
Width: 1130mm (effective width 1130mm)
Thermal conductivity: ≤ 0.021W/(m ∙ K)/compressive strength: ≥ 150KPA
Fire rating: B1 Level (can withstand fire for 90 minutes)
Oxygen index: ≥ 26.5%/Airtightness: ≥ 97% (the best sound insulation material)
Application direction: Industrial plants, wing rooms, insulation and enclosure structures

Or reach out to us today! 24hs waiting for you!
